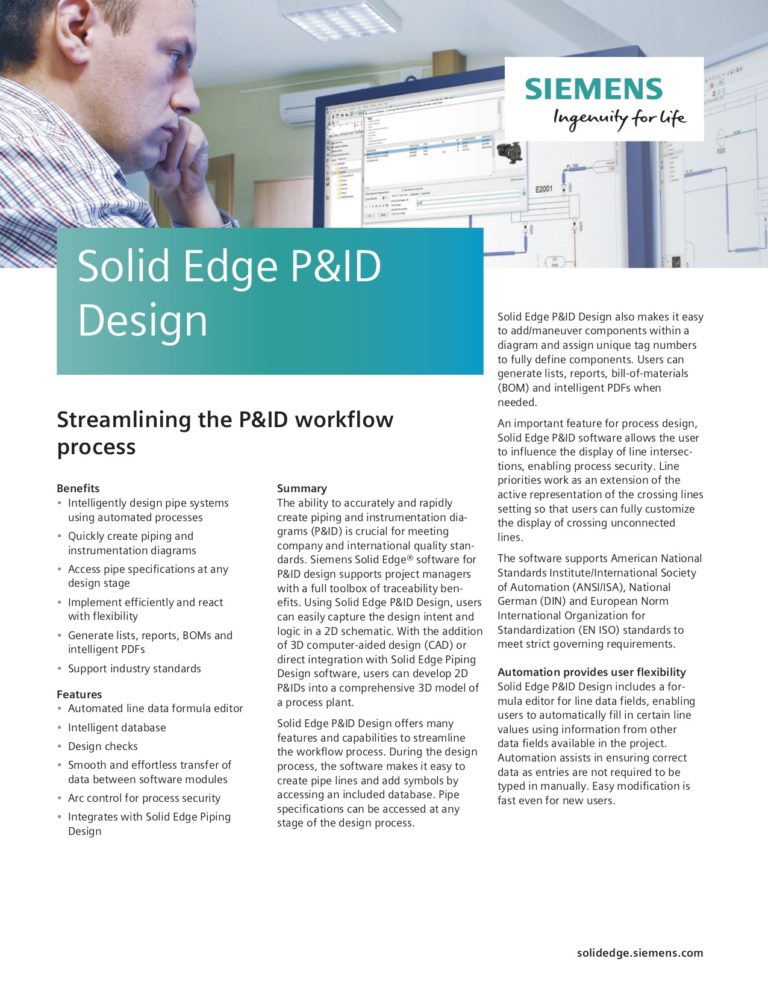

Solid Edge P&ID Design

The ability to accurately and rapidly create piping and instrumentation dia- grams (P&ID) is crucial for meeting company and international quality stan- dards. Siemens Solid Edge® software for P&ID design supports project managers with a full toolbox of traceability ben- efits. Using Solid Edge P&ID Design, users can easily capture the design intent and logic in a 2D schematic. With the addition of 3D computer-aided design (CAD) or direct integration with Solid Edge Piping Design software, users can develop 2D P&IDs into a comprehensive 3D model of a process plant.
